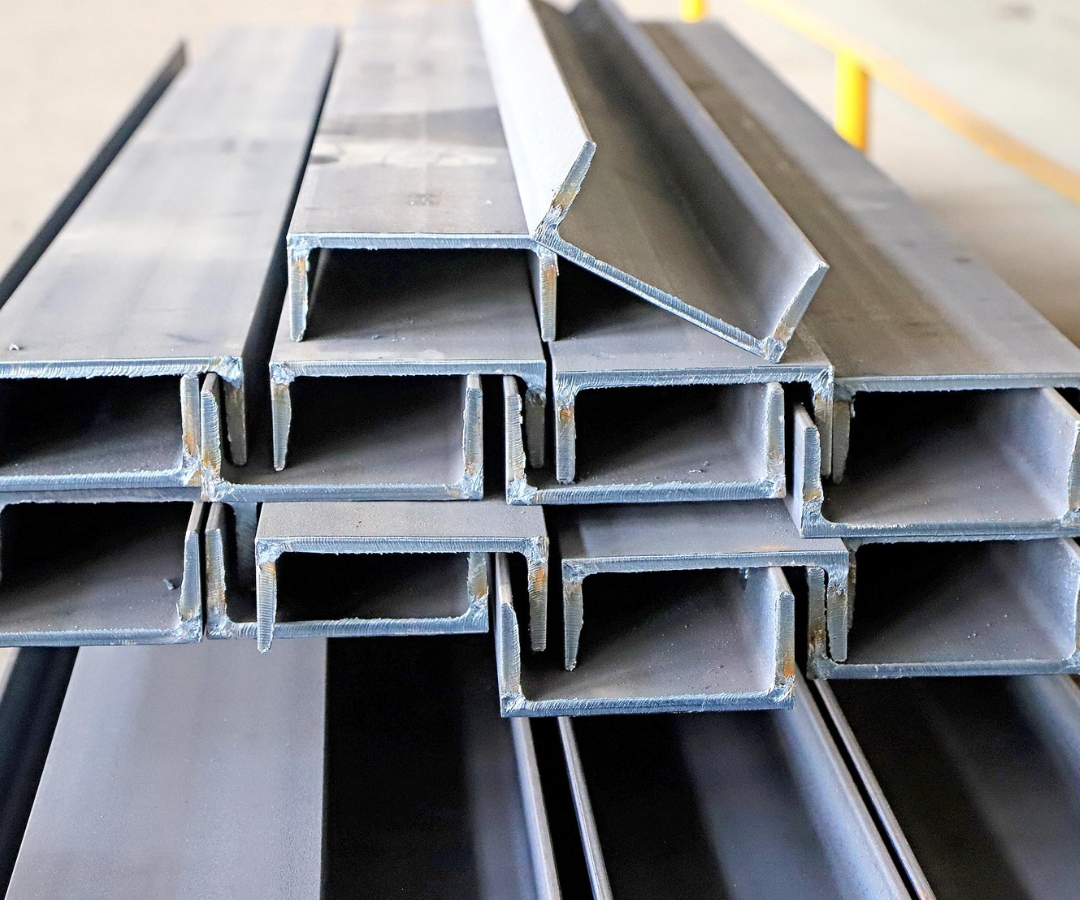

MS Channels are one of the most widely used structural steel components, designed to provide strength and stability in construction and engineering applications. Manufactured from mild steel, these channels offer excellent weldability, machinability, and durability, making them suitable for a wide range of industrial uses.
They are characterized by their C-shaped cross-section, which allows efficient load distribution and high structural stability. MS Channels are commonly used in building frameworks, support systems, machinery structures, and industrial sheds due to their ability to withstand heavy loads and external stress. These channels are available in different sizes and thicknesses to meet varied project requirements. Their compatibility with fabrication processes such as welding, cutting, and drilling, along with surface treatments like painting and galvanizing, ensures long-term performance in different environmental conditions.
Sanjay Sales supplies a comprehensive range of MS Channels in various grades and specifications, ensuring compliance with Indian and international standards and meeting the requirements of diverse industrial and construction projects.
Material Specifications:
Mechanical Properties & Applications:
| Grade | Standard | Equivalent Grades | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Typical Applications |
|---|---|---|---|---|---|---|
| IS 2062 E250 | IS 2062 | ASTM A36 / EN S235JR / JIS SS400 | ≥ 250 | 410 – 540 | ≥ 23 | Structural frameworks, building structures, support beams, machinery frames |
| IS 2062 E350 | IS 2062 | ASTM A572 Gr 50 / EN S355JR / JIS SM490 | ≥ 350 | 490 – 630 | ≥ 22 | Heavy structures, bridges, cranes, industrial structures |
| ASTM A36 | ASTM A36 | IS 2062 E250 / EN S235JR / JIS SS400 | ≥ 250 | 400 – 550 | ≥ 20 | Structural channels, shipbuilding structures, machinery supports |
| EN S275JR | EN 10025-2 | IS 2062 E275 / ASTM A36 | ≥ 275 | 410 – 560 | ≥ 22 | Construction frameworks, bridges, heavy fabrication |
Chemical Composition:
| Grade | C (%) | Mn (%) | Si (%) | P (%) | S (%) |
|---|---|---|---|---|---|
| IS 2062 E250 | ≤ 0.23 | ≤ 1.50 | ≤ 0.40 | ≤ 0.045 | ≤ 0.045 |
| IS 2062 E350 | ≤ 0.22 | ≤ 1.60 | ≤ 0.45 | ≤ 0.045 | ≤ 0.045 |
| ASTM A36 | ≤ 0.25 | ≤ 1.03 | ≤ 0.40 | ≤ 0.040 | ≤ 0.050 |
| EN S275JR | ≤ 0.21 | ≤ 1.50 | ≤ 0.35 | ≤ 0.035 | ≤ 0.035 |
Key Features:
- High strength and load-bearing capacity
- Excellent weldability and machinability
- Uniform shape for structural stability
- Easy to fabricate and install
- Durable and cost-effective solution
