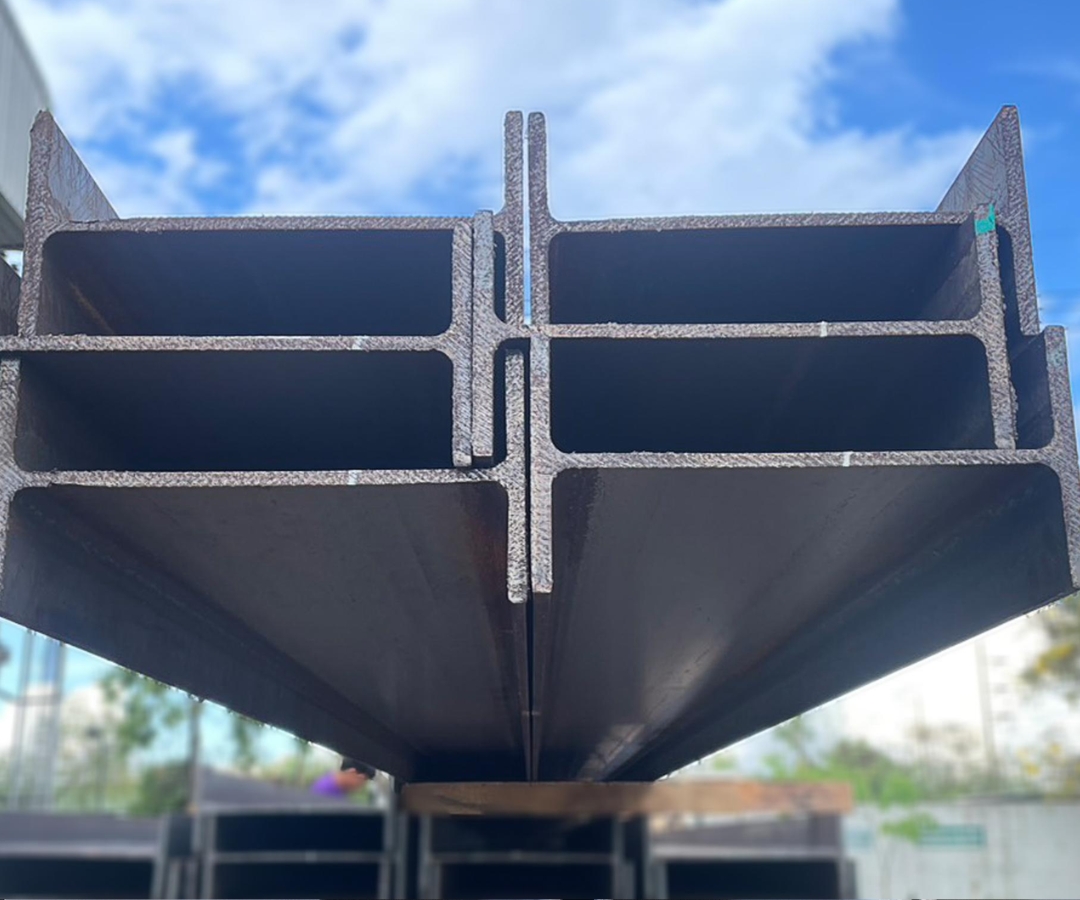

MS Beams are one of the most important structural elements used in construction and infrastructure projects. Designed with an I or H-shaped cross-section, these beams provide high strength and efficient load distribution, making them ideal for supporting heavy loads and large structures.
Manufactured from mild steel, MS Beams offer excellent weldability, durability, and resistance to stress, ensuring reliable performance in demanding environments. Their structural design allows them to span long distances while maintaining stability and minimizing deflection. They are widely used in building construction, bridges, industrial sheds, and heavy engineering structures. MS Beams are available in various sizes and specifications to meet diverse project requirements and can be further processed through cutting, drilling, and coating as needed.
Sanjay Sales supplies a comprehensive range of MS Beams in different grades and specifications, ensuring compliance with Indian and international standards for consistent quality and performance.
Material Specifications:
- Size Range: As per IS standards (ISMB / ISHB / ISWB sections)
- Thickness Range: As per section size
- Length: 6 m / 12 m / Custom lengths
- Type: I-Beam / H-Beam
- Surface Finish: Mill Finish / Painted / Galvanized
- Standards: IS 2062, IS 808
Mechanical Properties & Applications:
| Grade | Standard | Equivalent Grades | Yield Strength (MPa) | Tensile Strength (MPa) | Elongation (%) | Typical Applications |
|---|---|---|---|---|---|---|
| IS 2062 E250 | IS 2062 | ASTM A36 / EN S235JR / JIS SS400 | ≥ 250 | 410 – 540 | ≥ 23 | Building structures, industrial sheds, bridges, support beams |
| IS 2062 E350 | IS 2062 | ASTM A572 Gr 50 / EN S355JR / JIS SM490 | ≥ 350 | 490 – 630 | ≥ 22 | Heavy construction, bridges, cranes, high-rise structures |
| ASTM A36 | ASTM A36 | IS 2062 E250 / EN S235JR / JIS SS400 | ≥ 250 | 400 – 550 | ≥ 20 | Structural beams, building frames, machinery support |
| EN S275JR | EN 10025-2 | IS 2062 E275 / ASTM A36 | ≥ 275 | 410 – 560 | ≥ 22 | Construction frameworks, bridges, heavy fabrication |
Chemical Composition:
| Grade | C (%) | Mn (%) | Si (%) | P (%) | S (%) |
|---|---|---|---|---|---|
| IS 2062 E250 | ≤ 0.23 | ≤ 1.50 | ≤ 0.40 | ≤ 0.045 | ≤ 0.045 |
| IS 2062 E350 | ≤ 0.22 | ≤ 1.60 | ≤ 0.45 | ≤ 0.045 | ≤ 0.045 |
| ASTM A36 | ≤ 0.25 | ≤ 1.03 | ≤ 0.40 | ≤ 0.040 | ≤ 0.050 |
| EN S275JR | ≤ 0.21 | ≤ 1.50 | ≤ 0.35 | ≤ 0.035 | ≤ 0.035 |
Key Features:
- High load-bearing capacity and structural strength
- Efficient load distribution with I/H shape design
- Excellent weldability and durability
- Suitable for long-span structures
- Reliable performance in heavy-duty applications
